Plumbing

The water management system is designed for extended cruising comfort. With generous 700L of freshwater storage tanks, you’ll have ample supply for both daily use and longer passages.

The efficient plumbing system ensures reliable water flow throughout the catamaran, with hot and cold water available at all sinks and showers.

The boat is fitted with automatic bilge pumps in each hull, and has additional redundancy built in – both 12v and manually operated.

FRESH WATER CIRCUIT

• Fresh water tank: upgraded 700L capacity (2 x 350L) with gauges at the general control panel on touch screen
• Fresh water circuit with 1 main water pressure pump in the port passageway

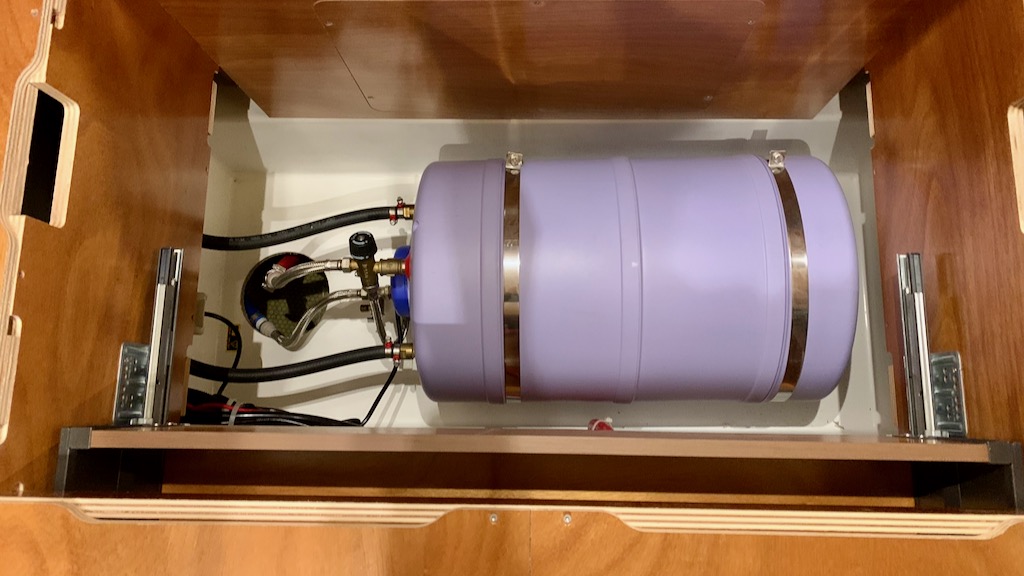

• 60 Litre electric water heater, 230V (generator or shore power) as well as engine heat exchanger

WATERMAKER

• Aquabase ES901 – ESW Comfort version (105 Litres/hour) 12V (installed 2022)
  https://slce-watermakers.com/desalinator/aqua-base-es/
• We run it directly from solar (34A / ~400Watts) producing as much water as you need.
• Energy recovery system
• Automatic salinity control
• Plumbed to galley sink to test water with easy under sink switch to redirect to water storage tanks.
• Push button flush system to flush entire system with fresh water after use.

GREY WATER

• All Showers drained by push button with individual gulper pumps (fully serviced Oct 2023)
• All sinks drained directly though individual throughull fittings

BLACK WATER

• 3 tanks x 80L – 1 per toilet (total 240L)
• Black water pipes replaced in port hull (March 2024)

BILGE PUMP CIRCUIT

3 bilge pumps in each hull

• 1 manual pump per hull with operating handles in cockpit
• 1 auto-activated submerged bilge pump per hull
• 1 switch activated non-submerged electric bilge pump per hull
